OAS
1
The option "sealed element" increases the reliability of these in humid environments. It does not completely eliminate the leakage currents of metal shealthed heating elements.
2
See features below.
3
For the U.S. only: The nominal current of the unit must not exceed 80% of the capacity of the disconnect.
For options available as factory installed and kit, if not mentioned on the order, will automatically be shipped as a kit.
Options
Product #
Price
Description
Factory
Installed
Kit
OAS1-120/XXX
107.00
120V control circuit (XXX = 208V, 240V, 277V, 347V, 480V, 600V) 2 to 10kW units
3
-
OAS2-120/XXX
107.00
120V control circuit (XXX = 208V, 240V, 480V, 600V) 15 to 30kW units
3
-
OAS3-120/XXX
107.00
120V control circuit (XXX = 240V, 480V, 600V) 40 to 60kW units
3
-
OAS-3P
52.00
Triple-pole contactor
3
-
OAS-CD1
101.00
Diffuser cone, 2 to 10kW units
-
3
OAS-CD2
125.00
Diffuser cone, 15 to 30kW units
-
3
OAS-CD3
155.00
Diffuser cone, 40 to 60kW units
-
3
OAS-CV-277
49.00
Summer fan switch, with motor 240V and 277V
3
-
OAS-CV-600
68.00
Summer fan switch , with motor 480V and 600V
3
-
OAS-DIS40
3
118.00
Disconnect switch, 40A
3
-
OAS-DIS80
3
142.00
Disconnect switch, 80A
3
-
OAS-DIS100
3
485.00
Disconnect switch, 100A
3
-
OAS-ES
1
54.00
Factory sealed element
3
-
OAS-FAN-AM
33.00
Fan blades with almond epoxy/polyester coating
3
-
OAS-MD
2
284.00
Mine duty
3
-
OAS-R
104.00
24V relay, without transformer
3
3
OAS-R/CV-240
72.00
Summer fan relay 240V, remote control (switch not included)
3
-
OAS-RT
113.00
24V relay, with transformer
3
3
OAS-T
84.00
Thermostat
3
3
• Drip shield.
• Sealed wiring compartment.
• Hinged door with neoprene gasket.
• Element delay on ON cycle (fan delay on OFF cycle).
• Heavy duty 18-gauge grille.
• Double-pole contactor.
• Heating element can be factory sealed upon request
to minimize moisture absorption (option -ES).

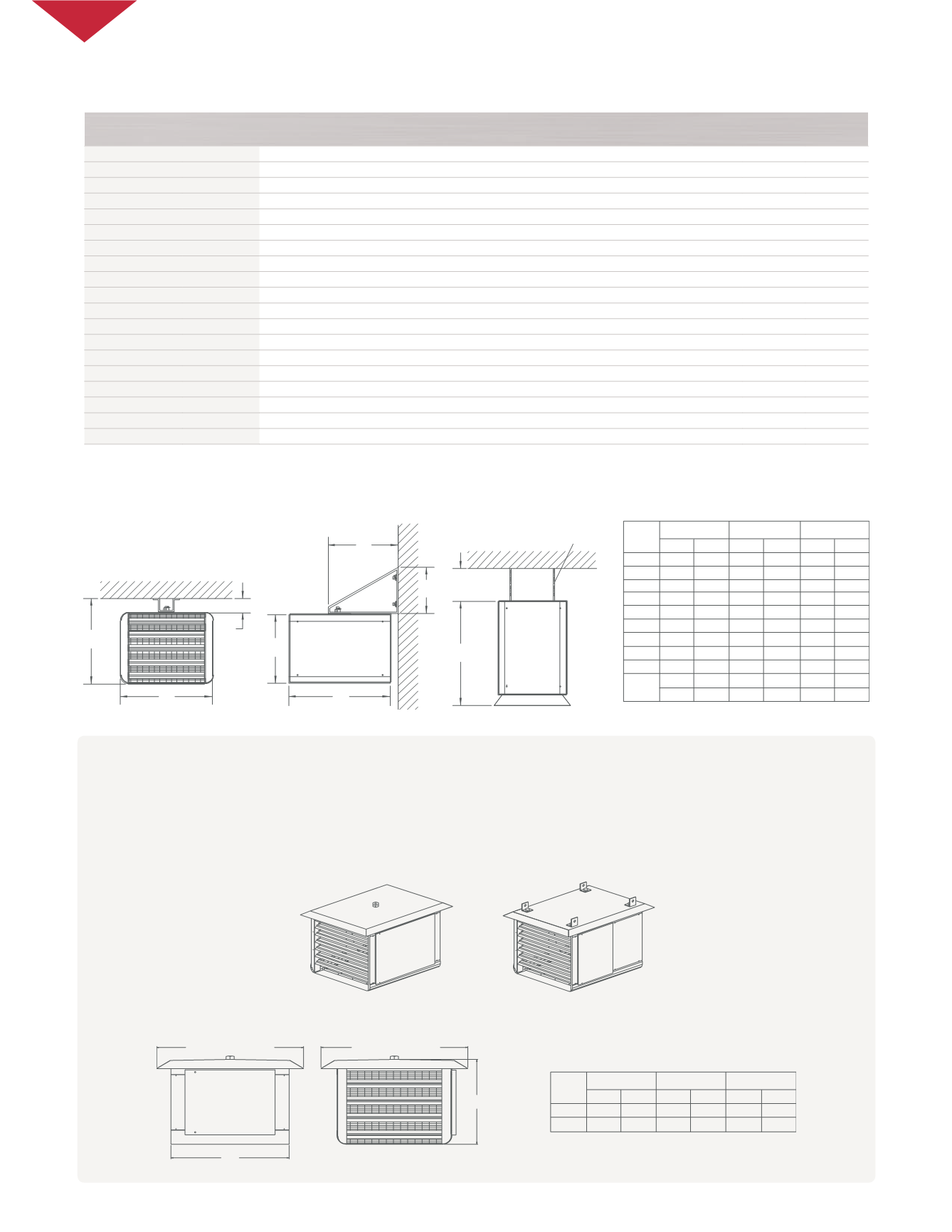

Mine Duty Option (-MD)
2 to 10kW 15 to 30kW 40 to 60kW
40 to 60kW
2 to 30kW
mm
305
432
in.
12
17
mm
444
572
in.
17
1/2
22
1/2
mm
585
870
in.
23
34
1/4
A
C
C
+ 2 3/8" (60 mm)
C
+ 2 3/8" (60 mm)
C
A
+ 3/16" (5 mm)
2 to 10kW 15 to 30kW 40 to 60kW
I
B
H
D
A
C
E
F
G (min.)
mm
305
419
432
357
290
490
305
123
428
kg
20
in.
12
16
1/2
17
14
1/16
11
7/16
19
5/16
12
4
7/8
16
7/8
lb
45
mm
444
556
572
470
407
630
305
148
592
kg
39
in.
17
1/2
21
7/8
22
1/2
18
1/2
16
24
13/16
12
5
13/16
23
5/16
lb
85
mm
585
641
870
-
-
924
305
305
890
kg
68
in.
23
25
1/4
34
1/4
-
-
36
3/8
12
12
35
lb
150
A
B
C
D
E
F
G
H
I
Weight
4 Threaded Rods
(1/2" - 13 UNC)
(Not Included)
